| Hardware Specifications |
| Wi-Fi Standards |
Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a I
EEE 802.11b/g
|
| MIMO |
2.4 GHz, 2×2 MIMO, 5 GHz, 2×2 MIMO |
| Max. Data Rate |
2.4 GHz: 400 Mbps, 5 GHz: 867 Mbps |
| Max Throughput |
Up to 400 Mbps at 2.4 GHz
Up to 867 Mbps at 5 GHz
1.267 Gbps per AP
|
| Max. Transmit Power |
CE EIRP: 2.4 GHz to 2.4835 GHz ≤ 20 dBm | 5.150 GHz to 5.350 GHz ≤ 23 dBm | 5.470 GHz to 5.725 GHz ≤ 30 dBm | Note: Country specific restrictions apply
Myanmar: 2400 MHz - 2483.5 MHz ≤ 20 dBm | 5150 MHz - 5350 MHz ≤ 23 dBm | 5470 MHz - 5850 MHz ≤ 25 dBm
Thailand: 2.4 GHz to 2.4835 GHz: 20 dBm | 5.150 GHz to 5.350 GHz: 23 dBm | 5.470 GHz to 5.725 GHz: 30 dBm 5.725 GHz to 5.825 GHz: 30 dBm
|
| Dimensions |
220 mm × 50 mm × 35.7 mm (8.66 in. × 1.97 in. × 1.41 in.) (excluding mounting bracket and antenna)
antenna size: 185mm (7.24 in.)
|
| Weight |
Main Unit: ≤ 0.4 kg |
| Fixed Ports |
1 × 10/100/1000 Base-T port |
| LEDs |
× system LED |
| Power Supply |
IEEE 802.3af standard PoE power supply 24 V passive PoE power supply |
| Basic Features |
| Max. Power Consumption |
≤ 14 W |
| Operating Temperature |
–30°C to +70°C (–22°F to +158°F) |
| Storage Temperature |
–40°C to +75°C (–40°F to +167°F) |
| Operating Humidity |
10% to 95% RH (non-condensing) |
| Storage Humidity |
10% to 95% RH (non-condensing) |
| Installation |

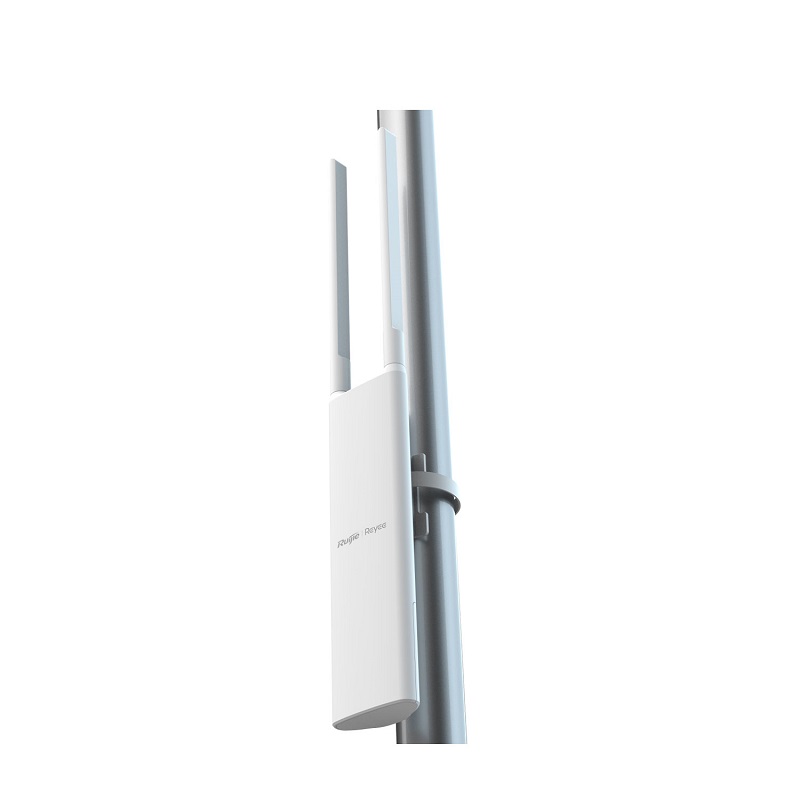

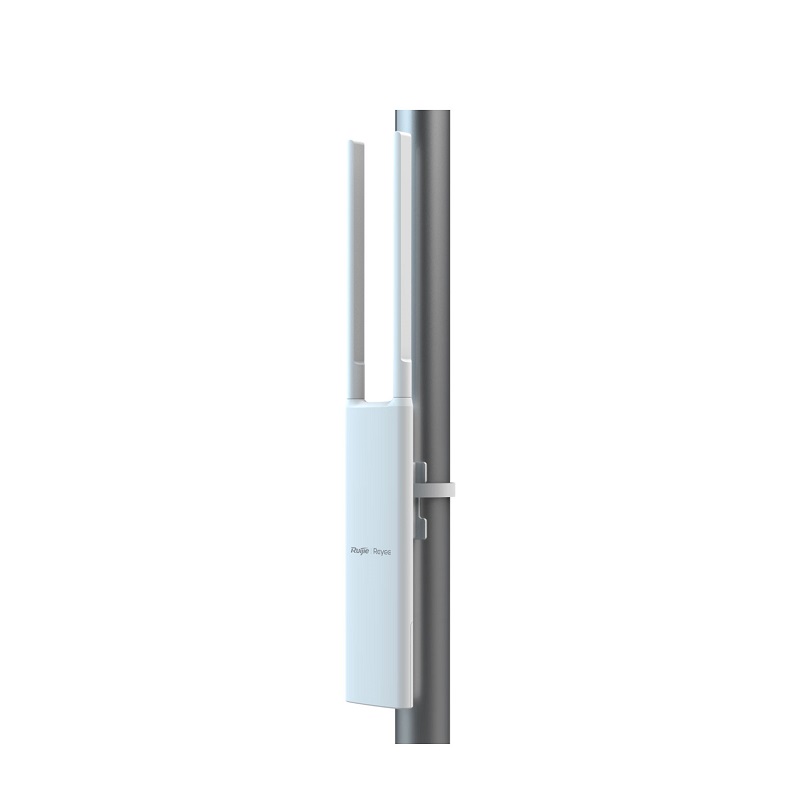

Wall mounting and pole mounting |
| EMC Compliance Standards |
GB9254
EN301 489
EN55022
B9254-2008
EN301 489
EN55022
FCC Part15
RSS-210
EN50155
EN50121
NEBS GR-63-CORE_Issue3_2006
|
| Shock and Vibration Compliance Standards |
IEC 61373
NEBS GR-63-CORE_Issue3_2006
EN300 328
EN301 893
GB/T25119
EN50155(EN61373)
|
| Radio Compliance Standards |
EN300 328
EN301 893
|
| IP (Ingress Protection) Rating |
IP65 |
| MTBF |
> 400,000 hours |
| Software Features |
| Operating Mode |
AP mode and routing mode |
| WLAN |
Maximum number of clients: 110
Recommended number of clients: 96
Up to 8 SSIDs
Support SSID hiding Configuring the authentication mode encryption mechanism
VLAN attributes for each SSID
SSID-based and radio-based STA limit
Support Layer 2 user isolation
|
| KV Roaming |
√ |
| Layer 2 Roaming |
√ |
| Layer 3 Roaming |
√ |
| Security |
Support PSK authentication
Support Black List / White List: Maximum 256 rules per SSID | Maximum 1024 rules per AP
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Standalone Portal
|
| Routing |
Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance |
Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app
Support local management with web
Support remote management with Ruijie Cloud platform
|
| Platform management features |
WIO2.0, Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
|
| AP Mesh |
Mesh management
Reyee Mesh
|
| Ordering Information |
1 |

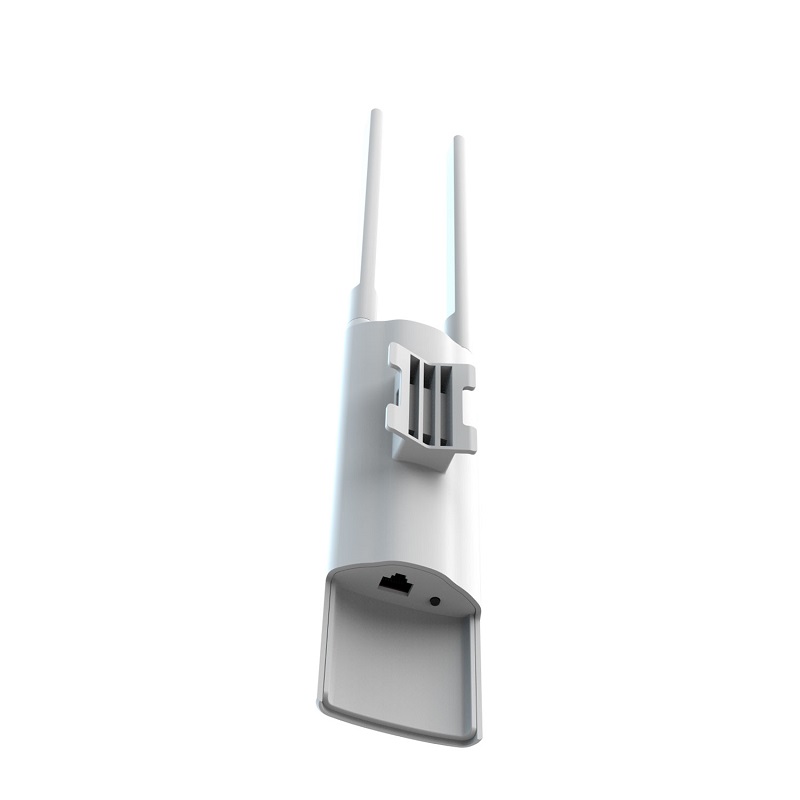

| RG-RAP52-OD Access Point |
2 |
| Antenna |
2 |
| Band Clamp |
1 |
| Mounting Bracket |
1 |
| Screw Kit (Containing Two 3.5 mm × 25 mm Expansion Screws and Two Wall Anchors) |
1 |
| Warranty Card |
1 |
| Quick Installation Guide |
1 |
