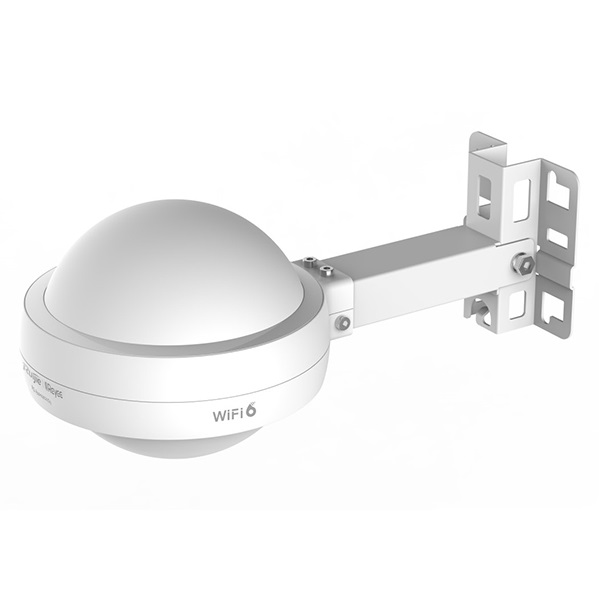

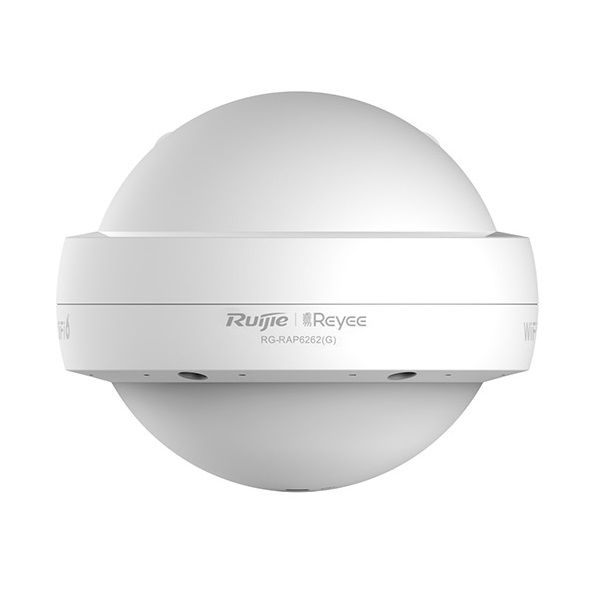

Bộ phát WiFi 6 AX1800 Ngoài Trời Ruijie RG-RAP6262(G), tốc độ 1775Mbps, IP68

Model

 RG-RAP6262(G)

Basic Feature

Wi-Fi Standards

 Wi-Fi 6 (IEEE 802.11ax)
 Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1)
 Wi-Fi 4 (IEEE 802. 11n)
 802.11a/b/g

RF Design

 2.4GHz: 2x2 MIMO

 5GHz: 2x2 MIMO

Max. Wi-Fi Speed

2.4 GHz: 574 Mbps

 5 GHz: 1201 Mbps

Antenna

 4

Antenna Type

 Built-in Omnidirectional

Antenna Gain

 2.4 GHz: 3 dBi

 5 GHz: 4 dBi

Transmit Power

- EIRP

  ≤ 26 dBm(2.4 GHz)

  ≤ 25 dBm(5 GHz )

  country-specific restrictions apply

- Myamar:

2400 MHz~2483.5 MHz ≤ 20 dBm

5150 MHz~5350 MHz ≤ 23 dBm

5470 MHz~5850 MHz ≤ 25 dBm

- Thailand:

  2400 MHz~2483.5 MHz ≤ 20 dBm

  5150 MHz~5350 MHz ≤ 23 dBm

  5470 MHz~5725 MHz ≤ 25 dBm

  5725 MHz~5850 MHz ≤ 30 dBm

Fixed Ports

 2 × 10/100/1000 Base-T

Max. Clients

 256

Recommended Clients

 100

Max. SSIDs

 8

Software Feature

WLAN Basic Features

 - SSID Hiding

 - Power Adjustment

 - Roaming: Layer 2 Roaming, Layer 3 Roaming

 - OFDMA

 - Target wake time (TWT)*

 - WMM

 - Radar Signal Detection and Frequency Hopping

WLAN Security

 - Security Mode: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK

 - Blacklist and Whitelist

Enhanced User Experience

 - Wi-Fi Optimization

 - Automatic RF adjustment via the platform

 - User Isolation: Layer 2 User Isolation

 - STA limit

 - Removing Low-RSSI STAs

 - Configuring STAs' RSSI Threshold

 - Average Speed Threshold

 - Adjusting Sending Rate of Beacon and Probe Response

 - Syslog Recording Why Users Lose Connection

 - Auto Channel and Power Adjustment on Cloud

 - RSSI Threshold for STA Access

 - Quick channel adjustment (auto channel selection)

Networks

 - Network Access Mode: DHCP Client

 - VLAN

System

 - Cloud Management

 - App Management

 - App Upgrade

 - App Restart

 - Scheduled Restart

 - Local Upgrade

 - Online Upgrade

 - Factory Reset

WLAN Features

Frequency Bandwidth

 2.4 GHz: 20/40 MHz

 5 GHz: 20/40/80 MHz

Recommended Wi-Fi

Coverage Radius

 2.4 GHz: 50m

 5 GHz: 150m

Max. Wi-Fi Coverage Radius

 2.4 GHz: 100m

 5 GHz: 300m

Operation Frequency Bands

 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz

 802.11a/n/ac: 5.150 GHz to 5.350 GHz

 802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz

 country-specific restrictions apply

Physical

LED Indicator

 3 × System LED Indicator

Buttons

 1 × Reset Button

Dimensions (W x D x H)

 200 mm × 220 mm × 166 mm (Without Mounting Bracket)

Power Supplies

 IEEE 802.3at PoE

 DC 12V/1.5A

Power Consumption

 ≤ 18W

DC Port Dimensions

 Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm

Operating Temperature

 -30°C to 65°C

Storage Temperature

 -40°C to 85°C

Operating Humidity

 0% to 100% (Noncondensing)

Storage Humidity

 0% to 100% (Noncondensing)

IP (Ingress Protection)

 IP68

Port Surge

 4 kV

MTBF

 >250000H
